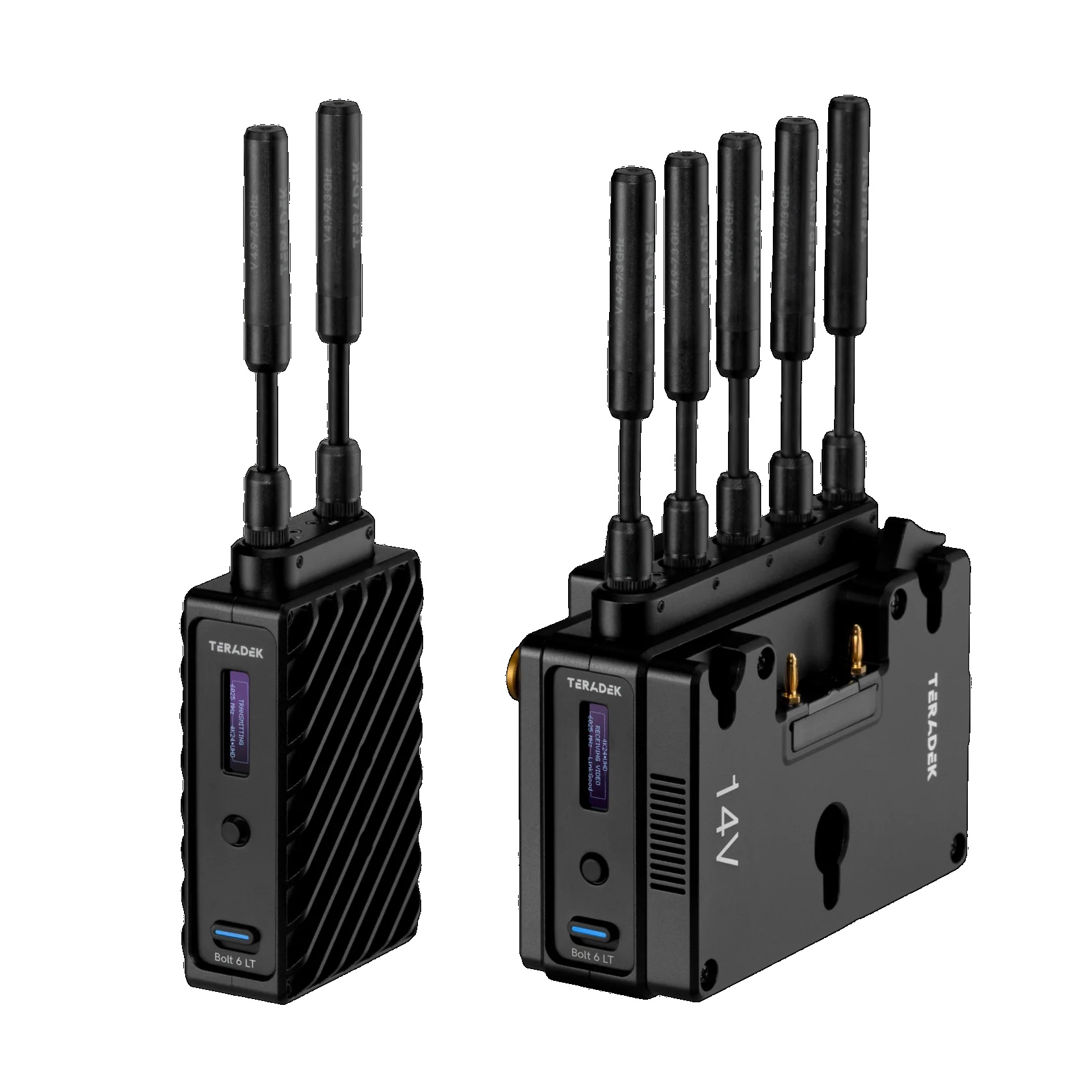

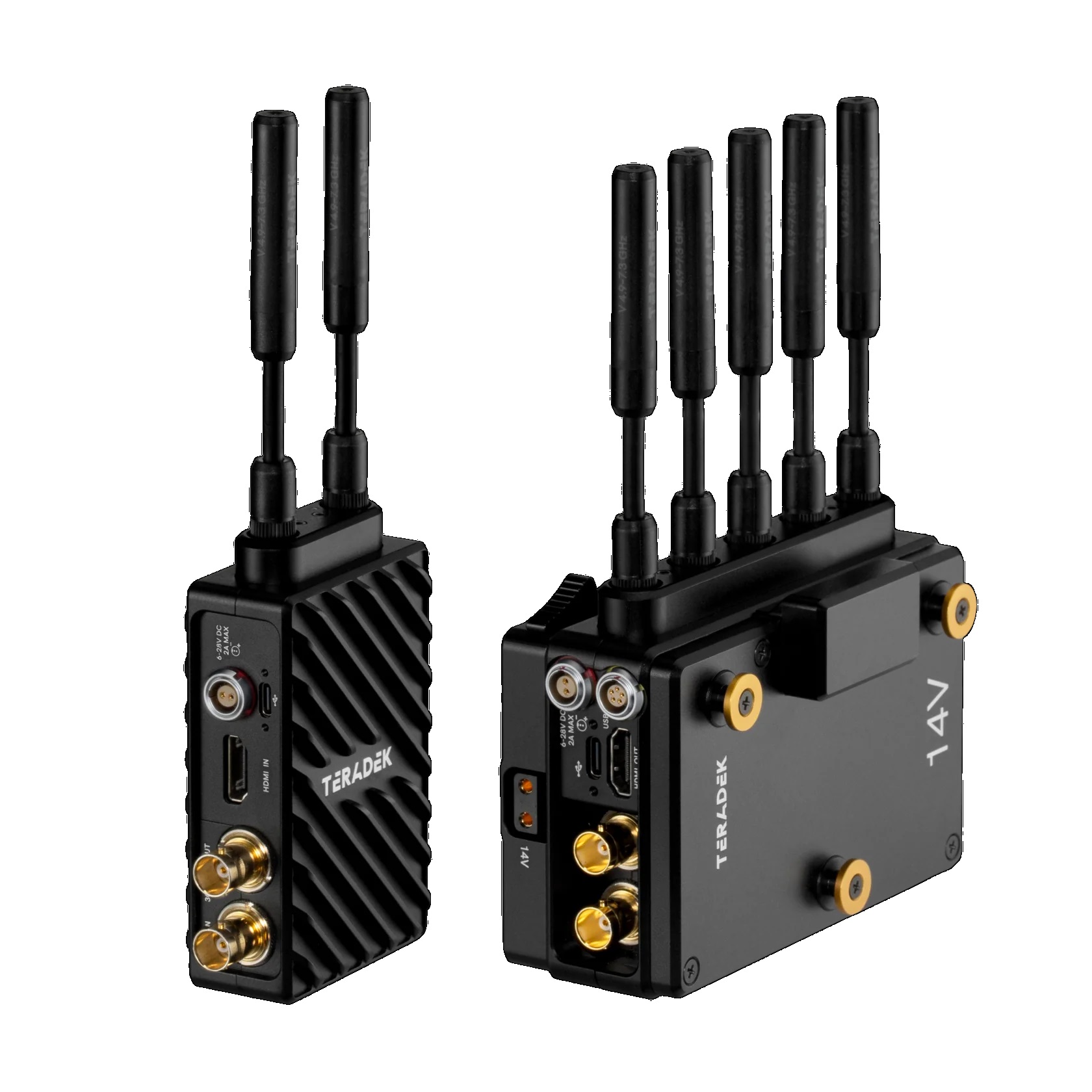

Teradek Bolt 6 LT 750 Kit (Gold Mount)

Transmit and receive lossless HD video from up to 750' line-of-sight with the Bolt 6 LT 750 3G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support. The transmitter inputs up to 4K video over HDMI or up to 1080p60 video via 3G-SDI, and the receiver outputs video via HDMI and 3G-SDI. A V-mount battery plate is included to power the receiver with a professional V-mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

+ More - Less

Included items:

Teradek Bolt 6 LT 750 Kit (Gold Mount)
(1) Teradek Bolt 6 LT 750 Receiver
(1) Teradek Bolt 6 LT 750 Transmitter
(7) Antenna for Bolt 6
(1) Cold Shoe Mount
(1) 3/16 Hex Key
(1) Wooden Camera Offset Mounting Bracket
(2) P-Tap to 2-Pin LEMO Cable for Teradek
(2) HDMI (Male to Male) Cable - 18"
(1) Teradek 2-Pin LEMO AC Adapter Cable - 6ft
(1) 1/4-20 Male Thread to Baby Receiver Adapter
(2) Coiled SDI Cable - 10"
Hard Case for Teradek Bolt 6 LT

Technical Specs:

Transmitter Input: 1x HDMI 1.4b Input
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Loop
Transmitter Supported Video: HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94

SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Transmitter Power Consumption: Transmitter: 9 W
Receiver: 11 W
Transmitter Audio: Embedded Audio HDMI: 2-Channel
Embedded Audio SDI: 2-Channel
Transmitter Battery: Gold Mount
Transmitter Dimensions: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
Transmitter Weight: 7.27 oz / 206.00 g
Receiver Output: Receiver: 1x HDMI 1.4b Output
Receiver: 1x BNC (3G-SDI) Output
Receiver Latency: < 0.01 ms
Receiver Dimensions: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Receiver Weight: 10.30 oz / 292.00 g
