Technical Specs:

Mount Type:

E-Mount

Sensor:

12.1 MP Full-Frame Exmor R CMOS Sensor

Shutter Type:

- Mechanical
- Electronic

Signal System:

NTSC / PAL

Recording Media:

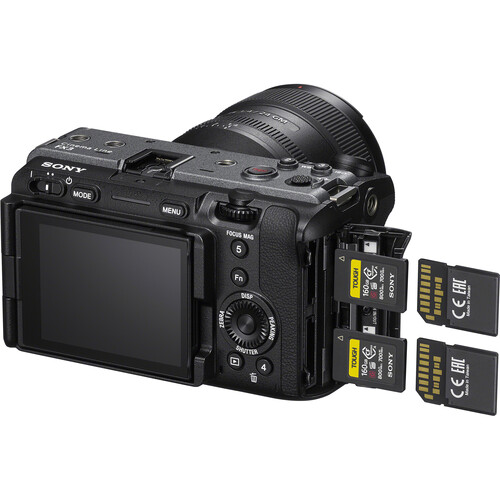

Dual Slot: CFexpress Type A / SD

Record Time:

Unlimited

Recording Format:

MPEG-4 AVC / XAVC S-I 4:2:2 10-bit:
- DCI 4K (4096 x 2160) up to 60 fps
- UHD 4K (3840 x 2160) up to 120 fps
- FHD (1920 x 1080) up to 240 fps

XAVC HS / H.265 Long GOP up to 4:2:2 10-bit:
- UHD 4K (3840 x 2160) up to 120 fps

XAVC S / MPEG-4 AVC up to 4:2:2 10-bit:
- UHD 4K (3840 x 2160) up to 120 fps
- FHD (1920 x 1080) up to 240 fps

XAVC Proxy:
- FHD (1920 x 1080) up to 60 fps
- HD (1080 x 720) up to 60 fps

RAW 16-bit Output:
- 4.2K (4264 x 2408) up to 60 fps
- UHD 4K (3840 x 2160) up to 60 fps
- FHD (1920 x 1080) up to 60 fps

Resolution:

- Actual: 12.1 Megapixel
- Effective: 10.2 Megapixel

Frame Rates:

- 1 to 120 fps (Full-Frame 4K)
- Up to 240 fps (Super35 1080p)

Bit Depth:

- 4:2:2 10-bit MPEG-H HEVC / H.265
- 4:2:0 8-bit MPEG-4 AVC / H.264
- RAW 16-bit Output via HDMI

ISO Range:

- Native: 80 to 102,400
- Extended: 80 to 409,600

Autofocus:

Fast Hybrid AF (phase-detection AF / contrast-detection AF):
- Continuous-Servo
- Face/Eye Tracking
- Direct Manual Focus (DMF)
- Focus Points: 627

Anamorphic Support:

Monitoring Only:
- 2.0x
- 1.6x
- 1.5x
- 1.3x

Display:

180° Tilting 3" Touchscreen LCD

Viewfinder:

No

Image Stabilization:

SteadyShot:
- Sensor-Shift
- 5-Axis

Built in ND:

No

Built-In Mic:

Stereo

Battery Type:

7.2 V Sony NP-FZ100

Battery Life (approximate):

95 to 135 min.

Wireless:

- Wi-Fi 5
- Bluetooth

Video I/O:

(1) HDMI Output

Audio I/O:

Body:
(1) 1/8" / 3.5 mm TRS Stereo Input
(1) 1/8" / 3.5 mm TRS Stereo Output

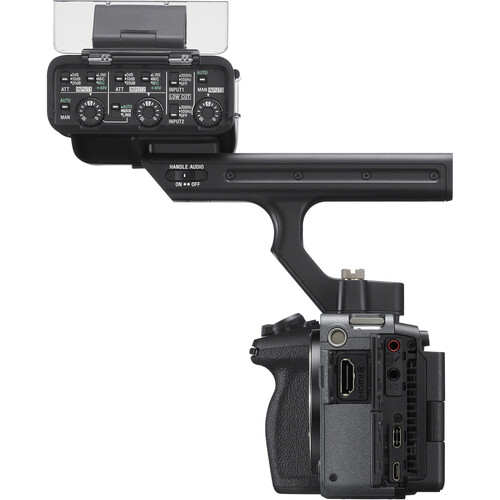

Top Handle:

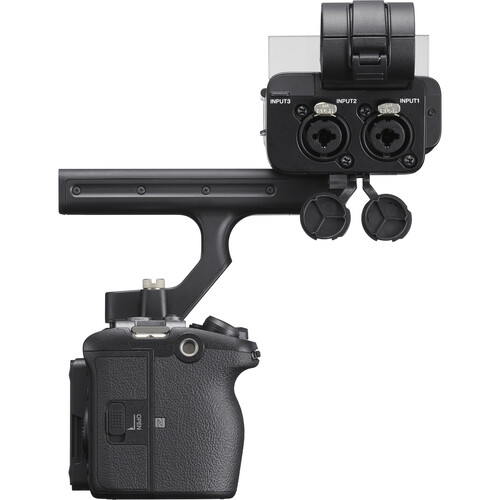

(2) 3-Pin XLR / 1/4" TRS Input
(1) 1/8" / 3.5 mm TRS Stereo Input

Power I/O:

(1) USB-C Input (27 W PD)

Other I/O:

(1) Sony Multi / Micro-USB

Weight:

- 1.4 lb / 640 g (Body Only)
- 1.6 lb / 715 g (With Battery, Recording Media)

Operating Conditions:

32 to 104° F / 0 to 40° C
