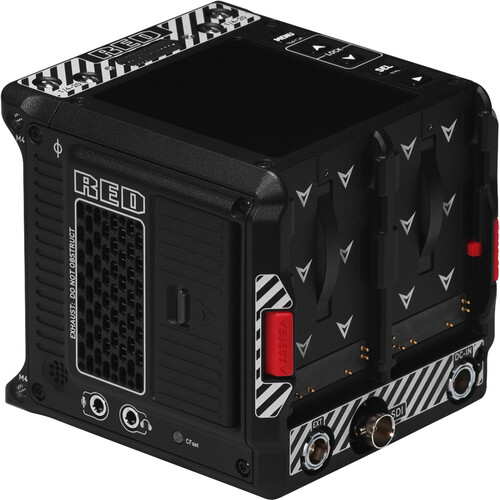

RED KOMODO 6K Camera Kit

RED has taken fresh steps with the release of the KOMODO 6K Digital Cinema Camera by bringing their legendary image quality and color science into an ultracompact, all-in-one design that weighs just 2.1 lb and measures about 4 x 4 x 4". Key to achieving this goal was the use of the Canon RF lens mount and the KOMODO 19.9MP Super35 CMOS sensor which boasts Global Shutter technology. This sensor can create images with 16+ stops dynamic range and eliminates rolling shutter artifacts. Users can also be certain they are getting RED quality thanks to the ability to record up to 6K at 40 fps, 5K at 48 fps, 4K at 60 fps, and 2K at 120 fps in REDCODE RAW for incredible flexibility in post-production.

+ More - Less

Watch it in action

Included items:

(1) Pelican Air 1535 Case for KOMODO
(1) RED KOMODO 6K Camera Body
(1) Canon EF to RF Adapter (Drop-In Filter)
(1) Canon Drop-In VND Filter (1.5 to 9-Stop)
(1) Canon Drop-In Clear Filter
(1) Expander Module for KOMODO
(1) Outrigger Handle for KOMODO
(1) Wing Grip for KOMODO
(1) AC Adapter for KOMODO
(1) AC Power Cable (C6)
(1) Canon CA-930 Compact Power Adapter
(1) AC Power Cable (Pol)
(2) REDVOLT BP Battery (6300mAh
(1) RED CFast Reader
(1) USB 3.1 Type-C to Type-C Cable (3')
(1) USB 3.1 Type-C F to Type-A M Adapter
(2) RED 512GB CFast Card
(1) 3/16" Hex Key
(1) 3mm Hex Key
(1) KOMODO SDI Safety Guide

Technical Specs:

Lens Mount:: RF
Sensor:: - Super 35mm Global Shutter CMOS
- 27.03 × 14.26 mm / 1.064 x 0.561"
Signal System:: NTSC / PAL
Recording Media:: Single Slot: CFast 2.0
Resolution:: Effective: 19.9 Megapixel (6144 x 3240)
Recording Format:: REDCODE® RAW:
- DCI 6K 17:9 (6144 × 3240) up to 40 fps
- 6K 2:1 (6144 x 3072) up to 40 fps
- 6K 2.4:1 (6144 x 2592) up to 50 fps
- 6K 16:9 (5760 x 3240) up to 40 fps
- DCI 5K 17:9 (5120 × 2700) up to 48 fps
- DCI 4K 17:9 (4096 × 2160) up to 60 fps
- 4K UHD 16:9 (3840 x 2160) up to 60 fps
- DCI 2K 17:9 (2048 × 1080) up to 120 fps

Apple® ProRes 422 HQ / 422:
- DCI 4K 17:9 (4096 × 2160) up to 60 fps
- DCI 2K 17:9 (2048 × 1080) up to 120 fps
Anamorphic Support:: S35 6K REDCODE® RAW:
- 4:3 2x (4320 x 3240)
- 6:5 2x (3888 x 3240)
- 1:1 2x (3240 x 3240)
- 3:2 1.8x (4860 x 3240)
- 4:3 1.8x (4320 x 3240)
- 3:2 1.6x (4860 x 3240)
- 16:9 1.5x (5760 x 3240)
- 17:9 1.3x (6144 x 3240)
- 17:9 1.25x (6144 x 3240)
Frame Rates:: 1 to 120 fps
Autofocus:: Phase-Detect Autofocus (PDAF):
- One-Shot (Single)
- CONTINUOUS Mode
ISO Range:: Native: 250 to 12,800
Bit Depth:: - 16-bit REDCODE® RAW
- 10-bit Apple® ProRes 422 HQ
Battery Type:: 7.2V Canon BP-900 Series
Weight:: 2.10 lbs / 0.95 kg (Body Only)
Audio I/O:: (1) 1/8" / 3.5 mm TRS Stereo Microphone Input
Video I/O:: (1) BNC (12G-SDI) Output
Power I/O:: (1) 2-Pin LEMO (7 to 17VDC) Input
Other I/O:: - KOMODO Body
(1) 9-Pin LEMO Extension Port

- Expander Module
(1) GPI (BNC)
(1) Genlock (BNC)
(1) Timecode In (BNC)
(1) CTRL (4-Pin LEMO)
