Blackmagic ATEM Mini HDMI Switcher Kit


Blackmagic ATEM Mini HDMI Switcher Kit

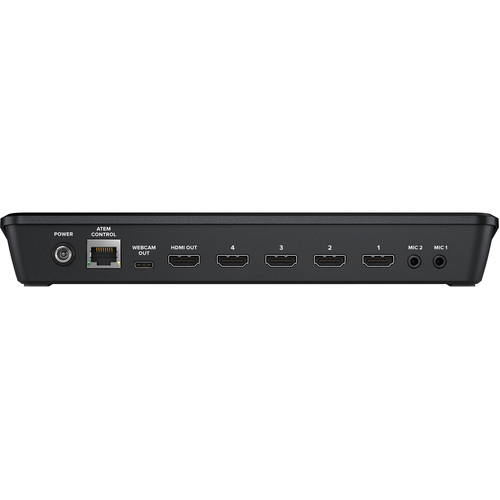

Designed for multicamera live streaming to the internet or broadcast applications, the compact ATEM Mini from Blackmagic Design provides gaming consoles, corporate computer streams, or HD cameras a four-input live production switcher with an integrated control panel. The four HDMI inputs are available on the rear of the chassis and they input up to 1080p60 video. There is also an HDMI output for a projector or external monitor, a USB Type-C output for streaming up to 1080p60 video to a computer, and an RJ45 10/100 Ethernet port for system management, remote control, and upgrades.

+ More - Less

Watch it in action

Included items:

(1) Nanuk 910 Case
(1) Blackmagic ATEM Mini HDMI Live Switcher
(1) 12V AC Adapter
(1) USB 3.0 Type-C to Type-C Cable (3')
(1) USB 3.1 Type-A to Type-C Cable (3')

Technical Specs:

Video Formats:: Input:
HDMI Video
- 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
- 1080i: 60, 59.94, 50
- 720p: 60, 59.94, 50

HDMI Resolutions for Computers
- 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
- 1080i: 60, 59.94, 50
- 720p: 60, 59.94, 50

Output:
- 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
Video Processing:: 10-Bit 4:2:2 YUV
Video I/O:: (4) HDMI Input
(1) HDMI Output
(1) USB Type-C (Computer/Webcam)
Audio I/O:: (2) 3.5 mm Stereo Analog Audio Input
Power I/O:: (1) Barrel
Other I/O:: (1) RJ45 Ethernet
Multi-View:: No
OS Compatibility:: - Apple macOS 10.13, 10.14, or Later
- Windows 10 or Later
Operating Conditions:: 41 to 104°F / 5 to 40°C
Storage Conditions:: 14 to 140°F / -10 to 60°
Dimensions:: 9.4 x 4.1 x 1.4" / 23.8 x 10.4 x 3.6 cm
Weight:: 19.4 oz / 550 g
