Blackmagic ATEM Mini SDI Switcher Kit

Blackmagic ATEM Mini SDI Switcher Kit

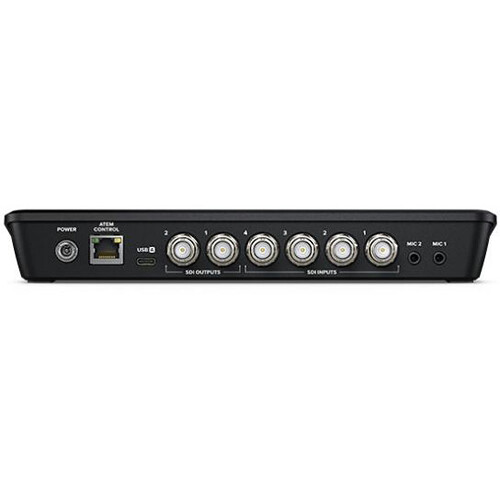

Designed for multi-camera live streaming to the internet or broadcast applications, the compact ATEM SDI from Blackmagic Design provides gaming consoles, corporate computer streams, or HD cameras a four-input, live-production switcher with an integrated control panel. The four SDI inputs are available on the rear of the chassis and they input up to 1080p60 video. Two 3G-SDI outputs are useful for a projector or external monitor, a USB-C output for streaming up to 1080p60 video to a computer, and an RJ45, 10/100 Ethernet port for system management, remote control, and upgrades.

+ More - Less

Included items:

(1) Nanuk 910 Case
(1) Blackmagic ATEM SDI Switcher
(1) 12V AC Adapter
(1) USB 3.0 Type-A to Type-C Cable (3')

Technical Specs:

Video Formats:: Input:
SDI
- 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
- 1080i at 56/59.94/60 fps
- 720p at 50/59.94/60 fps

Output:
SDI
- 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
USB-C
- 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Video Processing:: 10-Bit 4:2:2 YUV
Video I/O:: (4) BNC (3G-SDI) Input
(2) BNC (3G-SDI) Output
(1) USB Type-C (Computer/Webcam)
Audio I/O:: (2) 1/8" / 3.5 mm TRS Stereo Analog Female Input
Power I/O:: (1) Barrel (12 VDC) Input
Other I/O:: (1) RJ45 Control Input/Output
Multi-View:: No
OS Compatibility:: - macOS 11 or Later
- Windows 10 or Later
Operating Conditions:: 37 to 72°F / 5 to 40°C up to 90% Humidity
Storage Conditions:: 14 to 140°F / -10 to 60°C
Dimensions:: 9.35 x 4.67 x 1.38" / 23.75 x 11.86 x 3.51 cm
Weight:: 23.9 oz / 678 g
