ARRI ALEXA 35 Camera Kit
Watch it in action

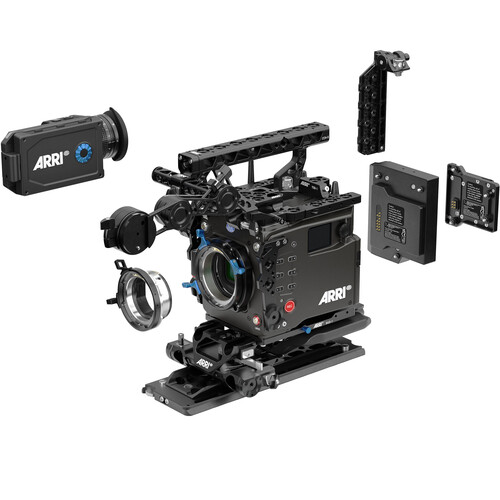

Included items:
- (1) Jason Cases Wheeled Case for ALEXA 35
- (1) ALEXA 35 Camera Body w/ Base Production Set
- (1) Premium License (120 fps / ARRIRAW / Open Gate/Anamorphic / Pre-Record / Look)
- (1) ARRI LPL Lens Mount (LBUS)
- (1) ARRI PL-to-LPL Lens Adapter
- (1) ARRI Balance Utility Dovetail BUD-1
- (1) ARRI Power Distribution Module PDM-1
- (1) ARRI B-Mount Battery Adapter
- (1) ARRI Compact Bridge Plate CBP-5
- (1) ARRI Bottom Dovetail Plate (12")
- (1) ARRI MVF-2 Multi Viewfinder
- (1) ARRI Cable VF Right Angle (1.5')
- (1) ARRI 3-Pin XLR to 8-Pin LEMO Power Cable
- (1) AC Power Supply for Alexa 35
- (1) AC Power Cable (C13)
- (1) ARRI Codex Compact Drive Reader
- (1) Thunderbolt 3 Cable
- (1) ARRI Codex Compact Drive 2TB
- (1) ARRI Rod Mounting Bracket RMB-7
- (1) 19-15mm Rod Insert
- (1) 15mm Aluminum Rod (6")
- (1) ARRI Articulated Mounting Plate AMP-1
- (1) 3mm Hex Key
- (1) Nanuk 930 Case
- (1) Dual B-Mount Charger
- (1) AC Power Cable (Non-Pol)
- (2) Core Helix Max 275 Battery (B-Mount)
Technical Specs:

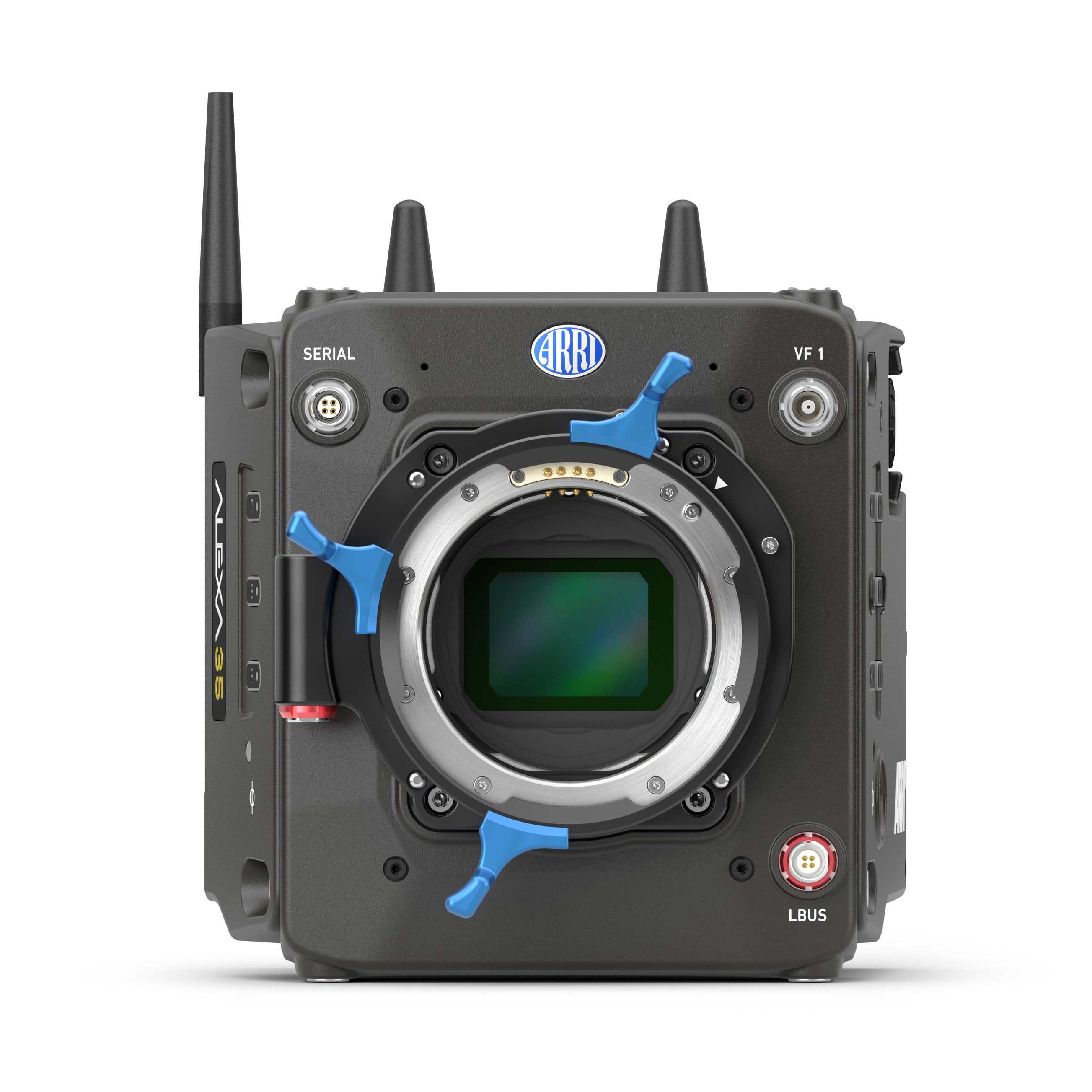

- Lens Mount:
- LPL & PL
- Sensor:
- - Super35 ARRI ALEV 4 CMOS
- 28.0 x 19.2 mm / 1.102 x 0.756“ - Signal System:
- NTSC / PAL
- Recording Media:
- Single Slot: Codex Compact Drive
- Resolution:
- Effective: 14.58 Megapixel (4608 x 3164)
- Recording Format:
- ARRIRAW:
- 4.6K 3:2 Open Gate up to 35 fps (1TB) / 75 fps (2TB)
- 4.6K 16:9 up to 45 fps (1TB) / 75 fps (2TB)
- 4K 16:9 up to 55 fps (1TB) / 120 fps (2TB)
- 4K 2:1 up to 65 fps (1TB) / 120 fps (2TB)
- 3.8K 16:9 up to 65 fps (1TB) / 120 fps (2TB)
- 3.3K 6:5 up to 55 fps (1TB) / 100 fps (2TB)
- 3K 1:1 up to 55 fps (1TB) / 100 fps (2TB)
ProRes 4444 / 422 HQ / 4444XQ:
- 4.6K 3:2 Open Gate up to 60 fps
- 4.6K 16:9 up to 75 fps
- 4K 16:9 up to 90 fps (1TB) / 100 fps (2TB)
- UHD up to 105 fps (1TB) / 120 fps (2TB)*
- 2K up to 120 fps*
- HD up to 120 fps*
- 4K 2:1 up to 100 fps (1TB) / 120 fps (2TB)
- 3.3K 6:5 up to 75 fps
- 4K 2.39:1 Ana 2x up to 90 fps**
- 3K 1:1 up to 90 fps
- 3.8K 2:1 Ana 2x up to 100 fps**
- 2.7K 8:9 up to 100 fps
- 2K 16:9 S16 up to 120 fps
*Downsampled from 4K 16:9
**Desqueezed & Scaled - Anamorphic Support:
- 4.6K 3:2 Open Gate / 4.6K 16:9 / 3.3K 6:5 / 3K 1:1:
- 1.25x
- 1.3x
- 1.33x
- 1.5x
- 1.65x
- 1.8x
- 1.85x
- 2.0x
4K 2.39:1 Ana 2x / 3.8K 2:1 Ana 2x / 2.7K 8:9:
- 2.0x - Frame Rates:
- 0.75 to 120 fps
- Autofocus:
- No
- Built in ND:
- - 2-Stop (0.6)
- 4-Stop (1.2)
- 6-Stop (2.1) - Built-In Mic:
- Stereo
- ISO Range:
- Native: 160 to 6400
- Bit Depth:
- - 13-bit Log (ARRIRAW)
- 12-bit LogC4 (Apple ProRes) - Image Stabilization:
- No
- Battery Type:
- 24V B-Mount
- Weight:
- 6.4 lb / 2.9 kg (with Antennae & Lens Mount Adapter.)
- Audio I/O:
- Body:
(1) 6-Pin LEMO Line Input
MVF-2:
(1) 1/8" / 3.5 mm TRS Headphone / Mic Output - Video I/O:
- (1) BNC (12G-SDI) Output
(1) BNC (12G-SDI) Input / Output - Power I/O:
- Body:
(1) 8-Pin LEMO (20.5 to 33.6 VDC) Input
(1) 2-Pin LEMO 12V Output

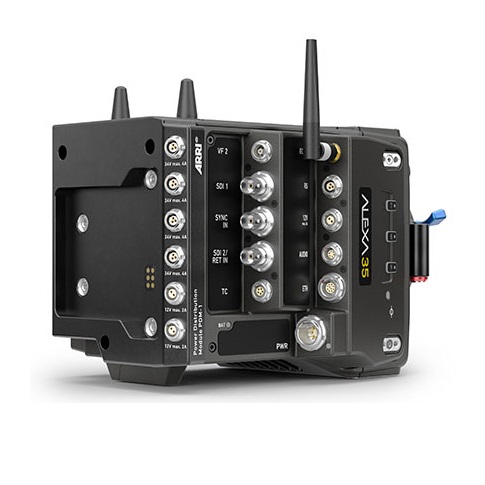

PDM-1:
(4) 3-Pin Fischer 24V Output
(2) 2-Pin LEMO 12V Output
(1) Twist P-Tap 12V Output

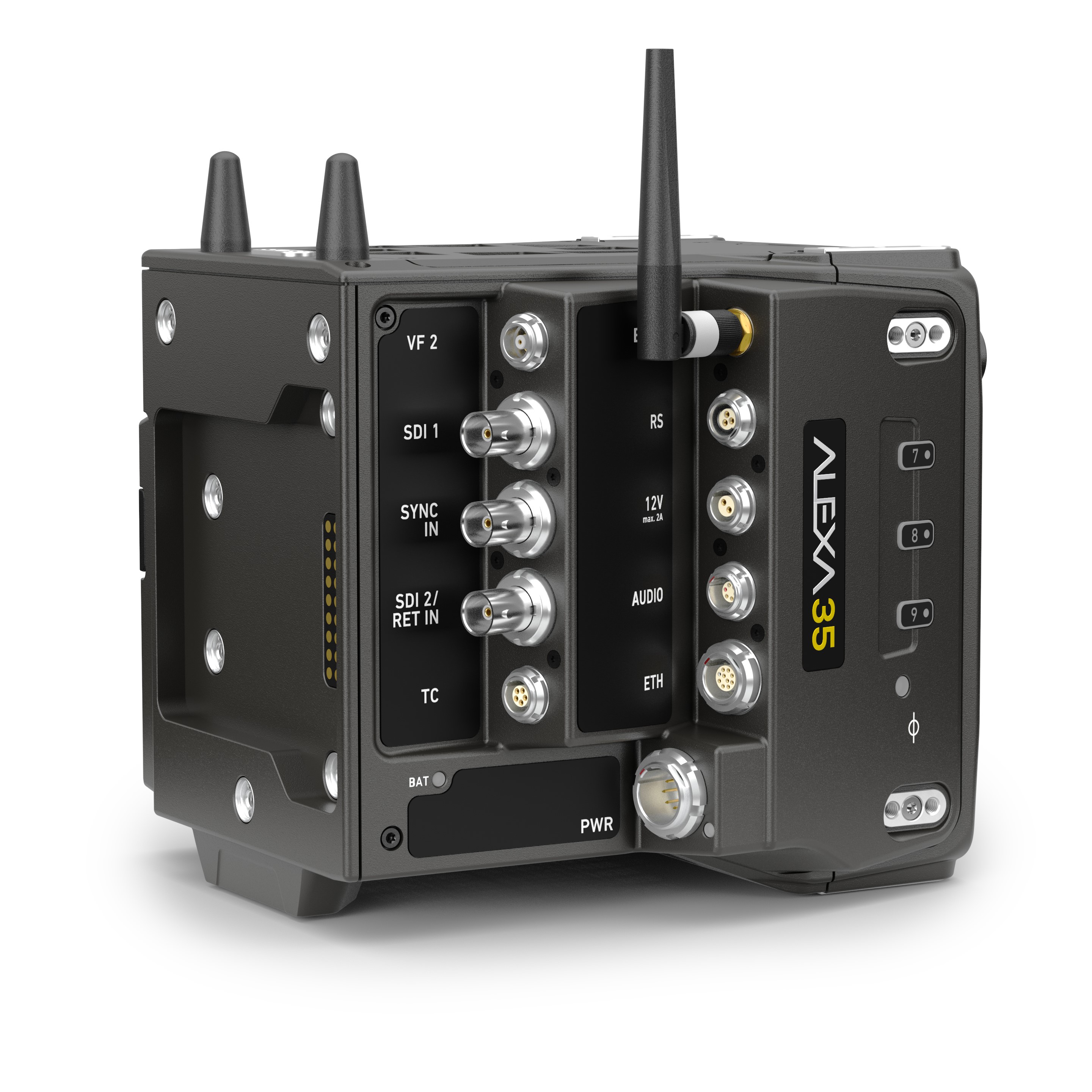

- Other I/O:
- Body:
(2) CoaXPress Viewfinder
(1) 4-Pin LEMO (LBUS) Control Input / Output
(1) 4-Pin LEMO (Serial) Data Input / Output
(1) 5-Pin LEMO (Timecode) Input / Output
(1) 3-Pin Fischer RS Output
(1) 10-Pin LEMO (Ethernet) Control
(1) BNC (Sync) Input
(1) USB-C Data Input / Output
LPL Mount:
(1) 4-Pin LEMO (LBUS) Control Input / Output
